March 2014
February 2014          Back to SONEX         April 2014          Back to Ashton Aerospace




Insert Cool Pic and Caption Here






Total Hours:               23.2

Hours Fabricating:       23.2

Fab Hours to Date:      534.4

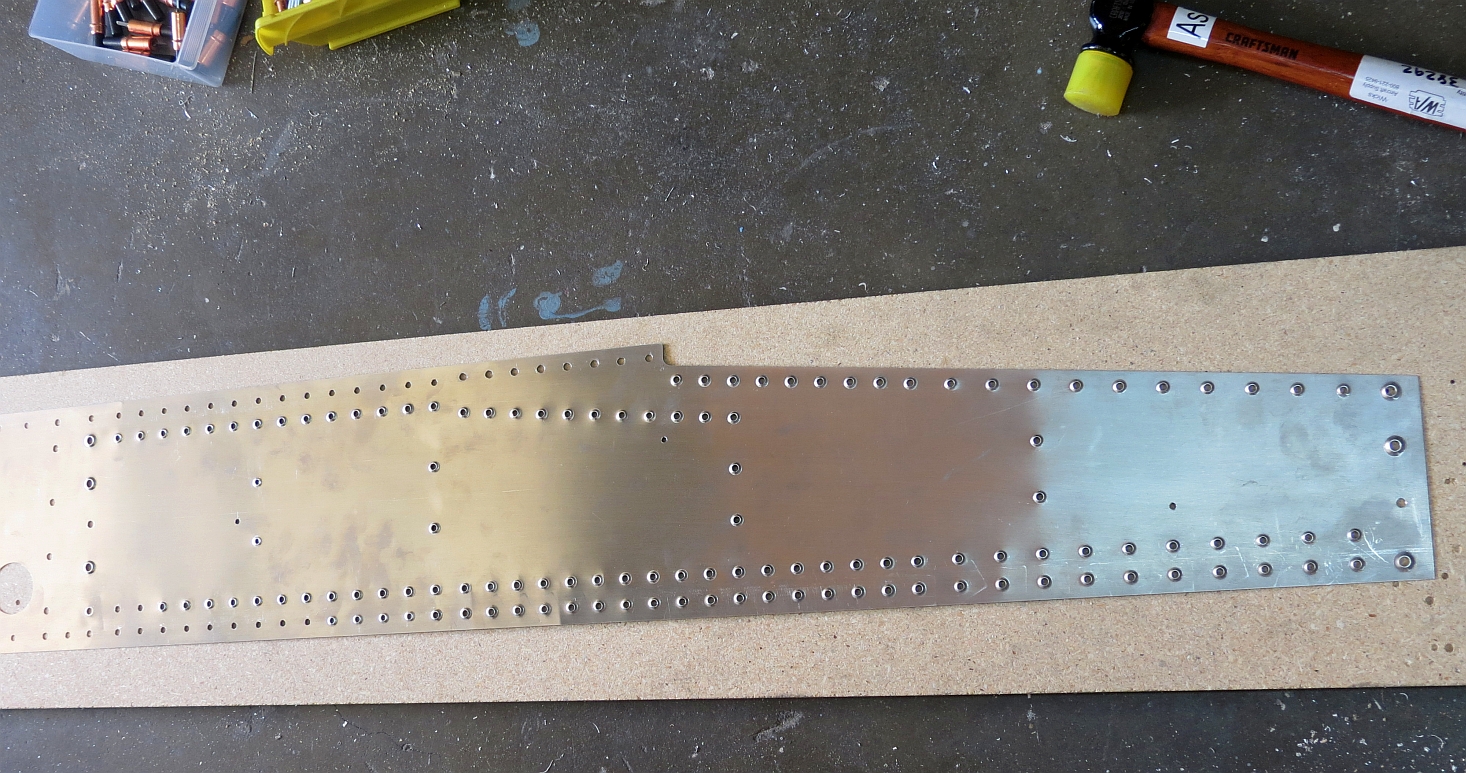

23-Mar-14

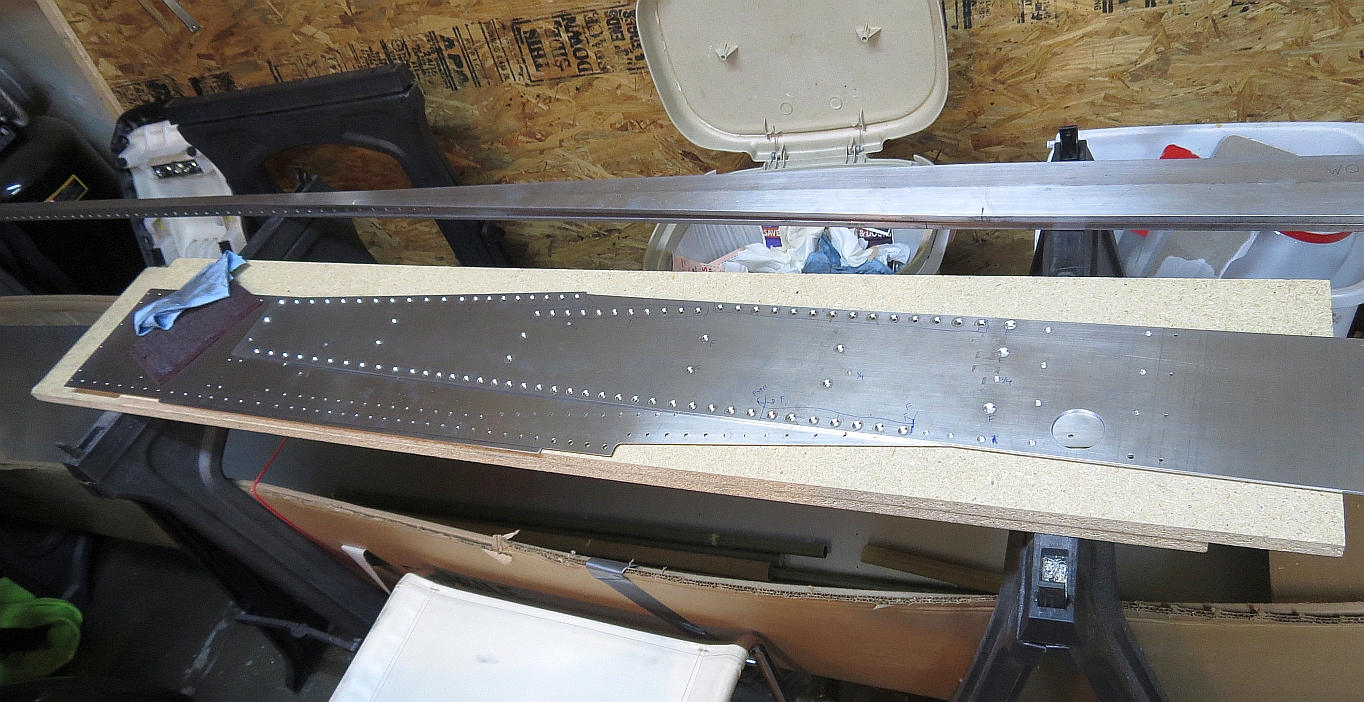

24-Mar-14





3-Mar-14

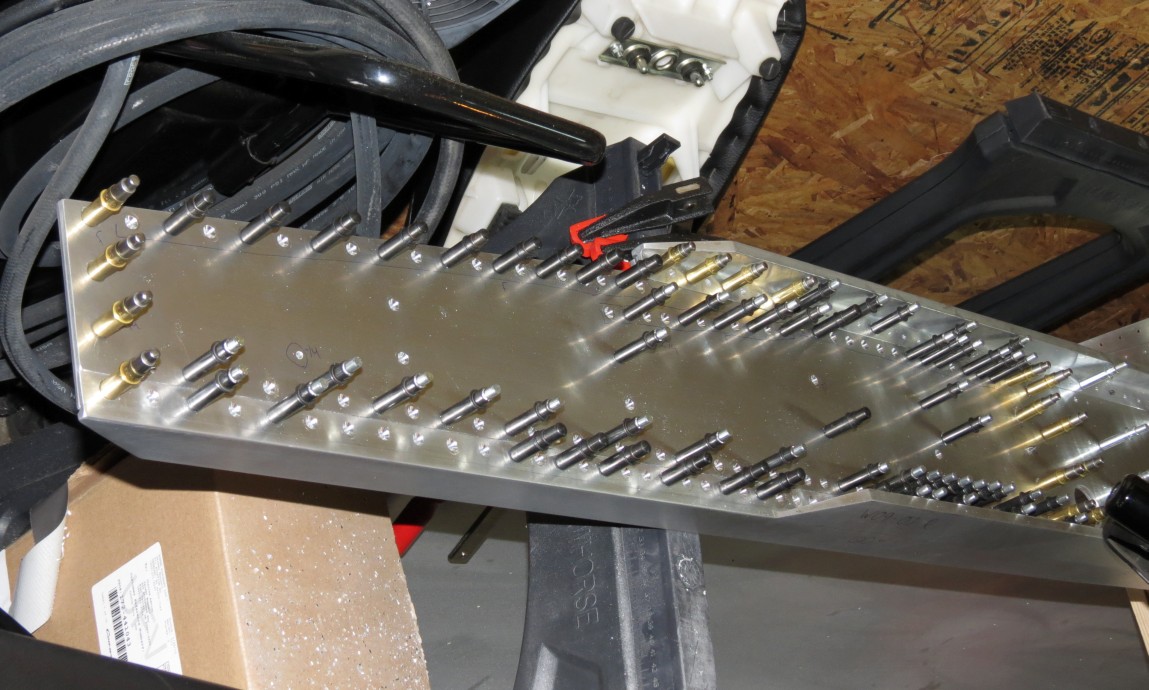

I finished drilling all countersinks on the root section of the right main wing spar W08-01R





22-Mar-14

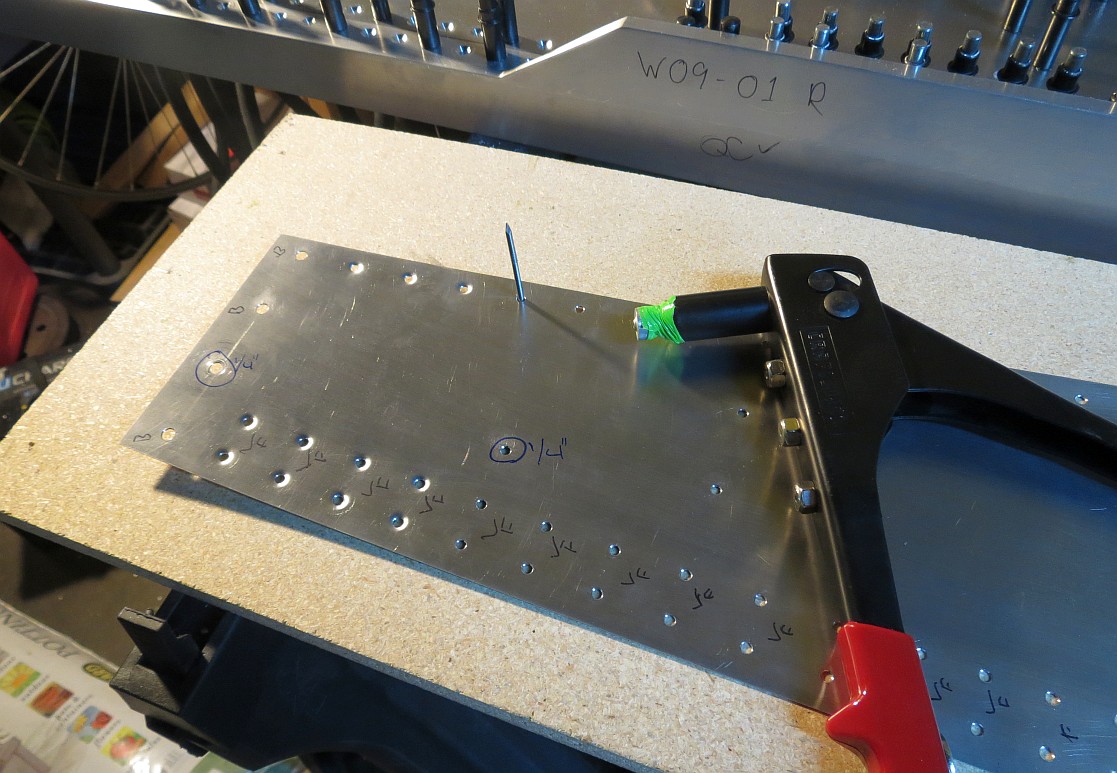

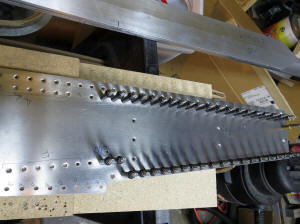

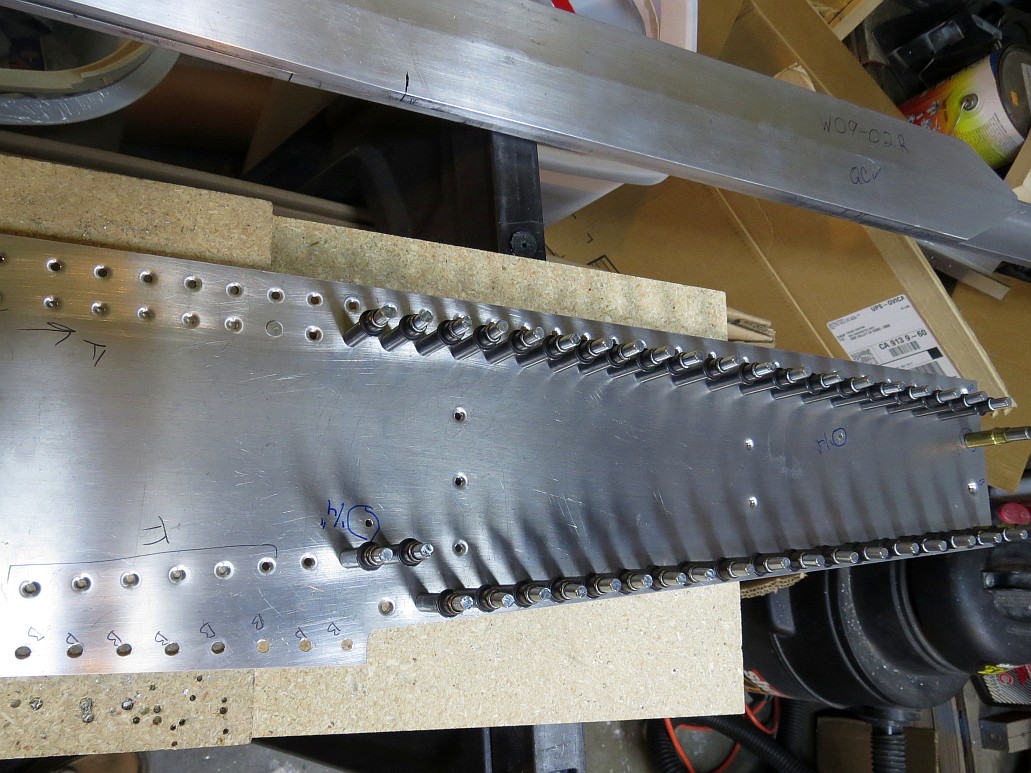

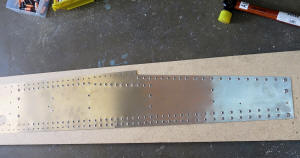

I Started dimpling the right main sheer web at the spar root where it overlaps the left spar.  the screws and rivets in this section are flush.







1-Mar-14

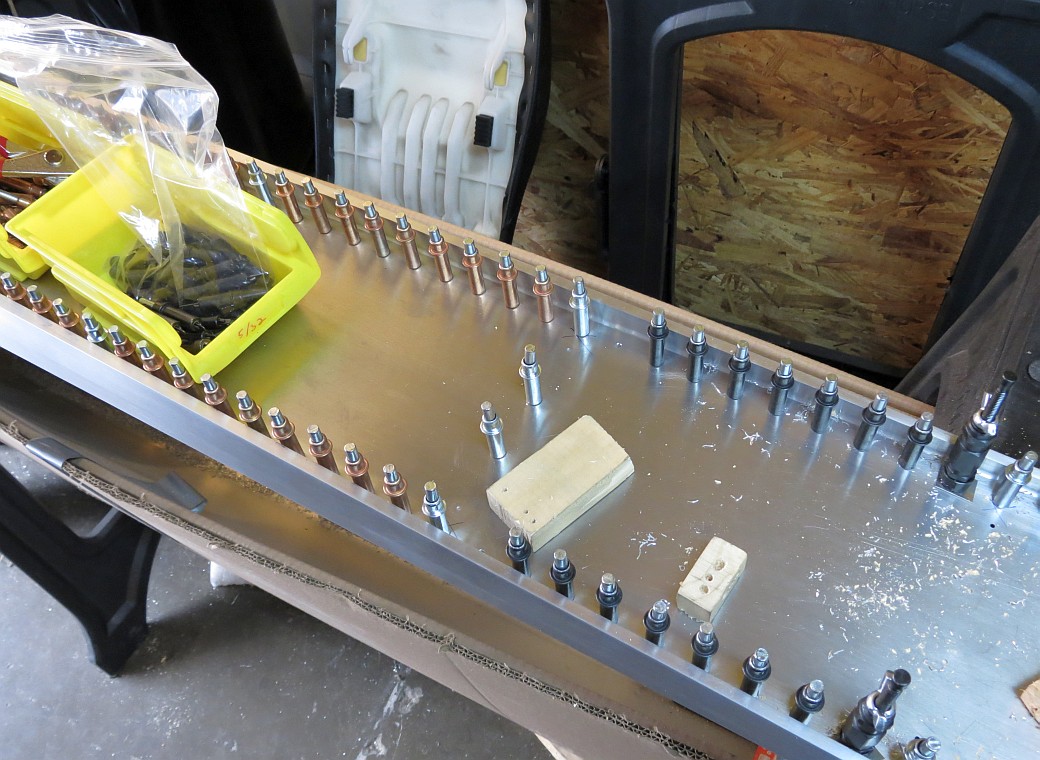

I finished updrilling all non-flush rivet holes, and all bolt holes in the main right spar assembly. I disassembled the assembly to start deburring.

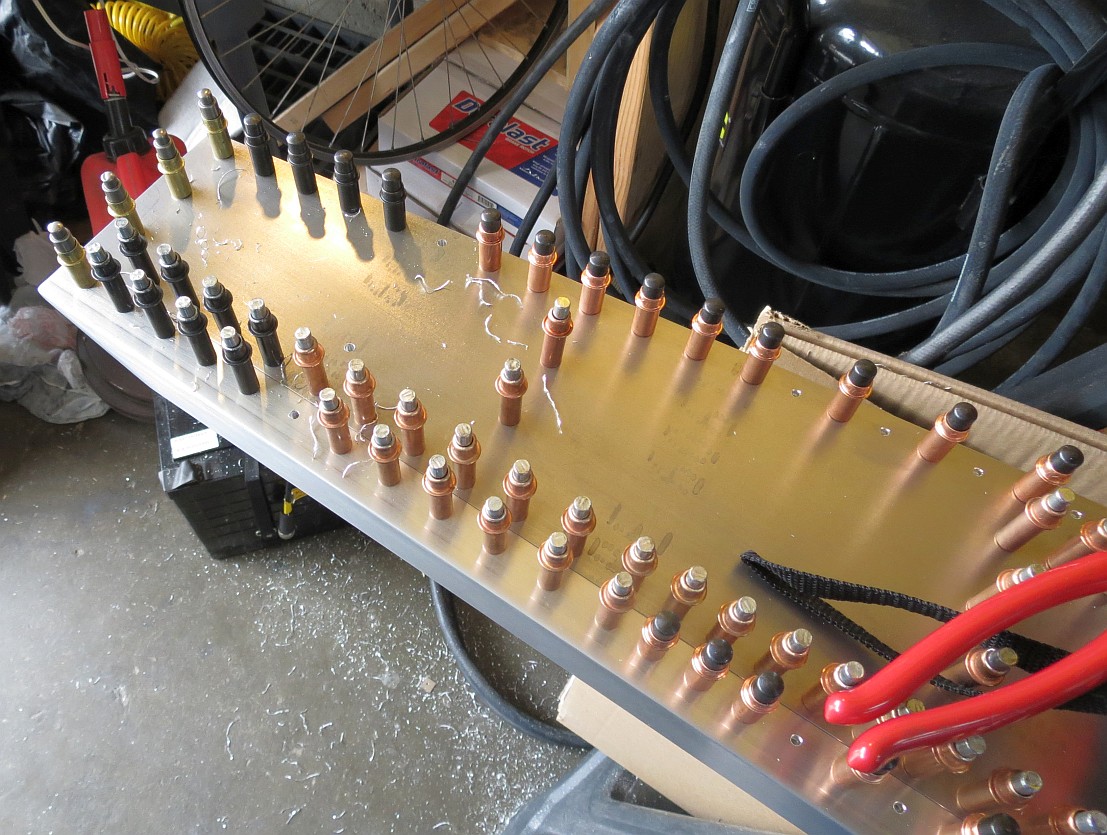

2-Mar-14

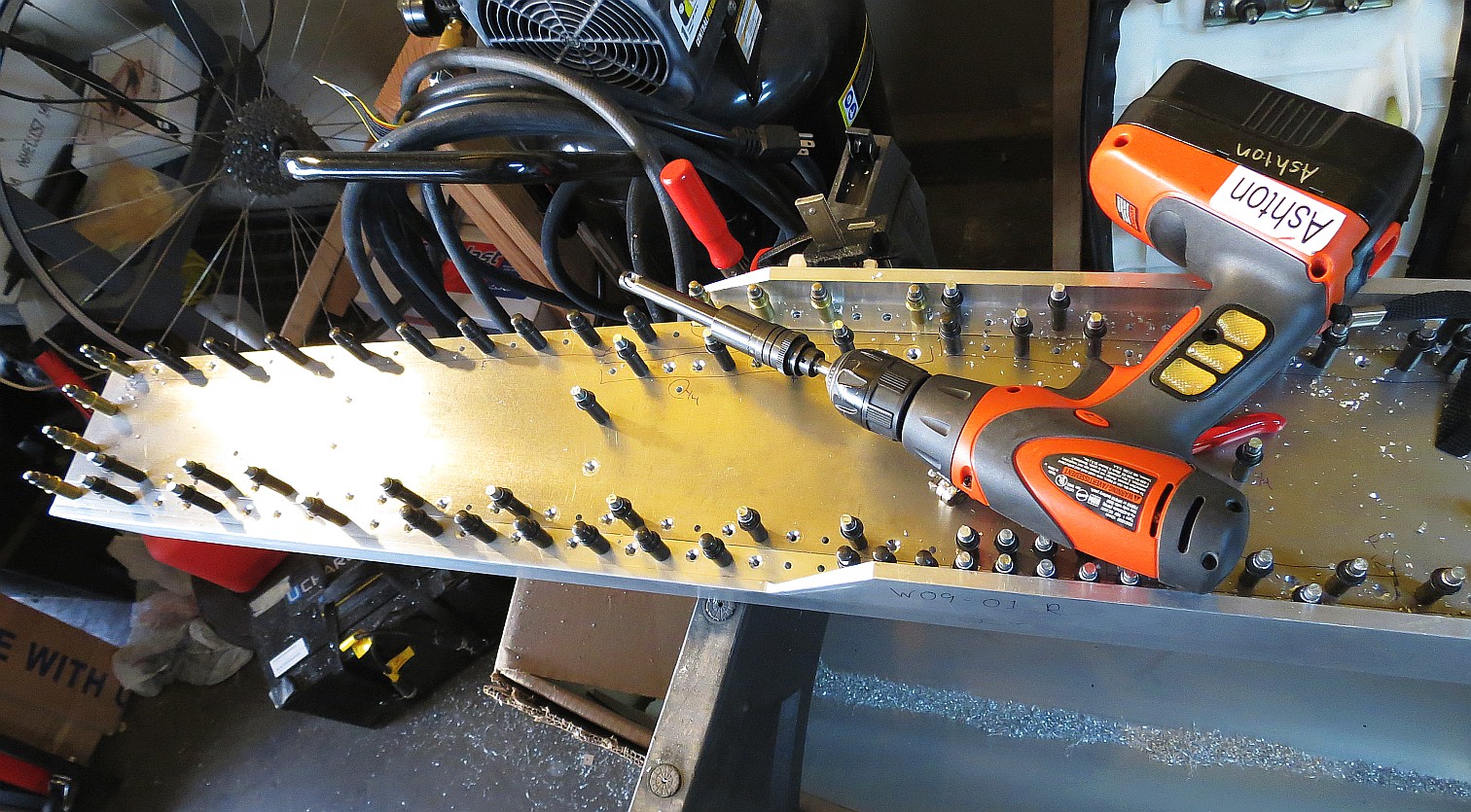

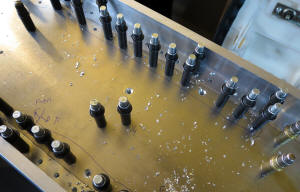

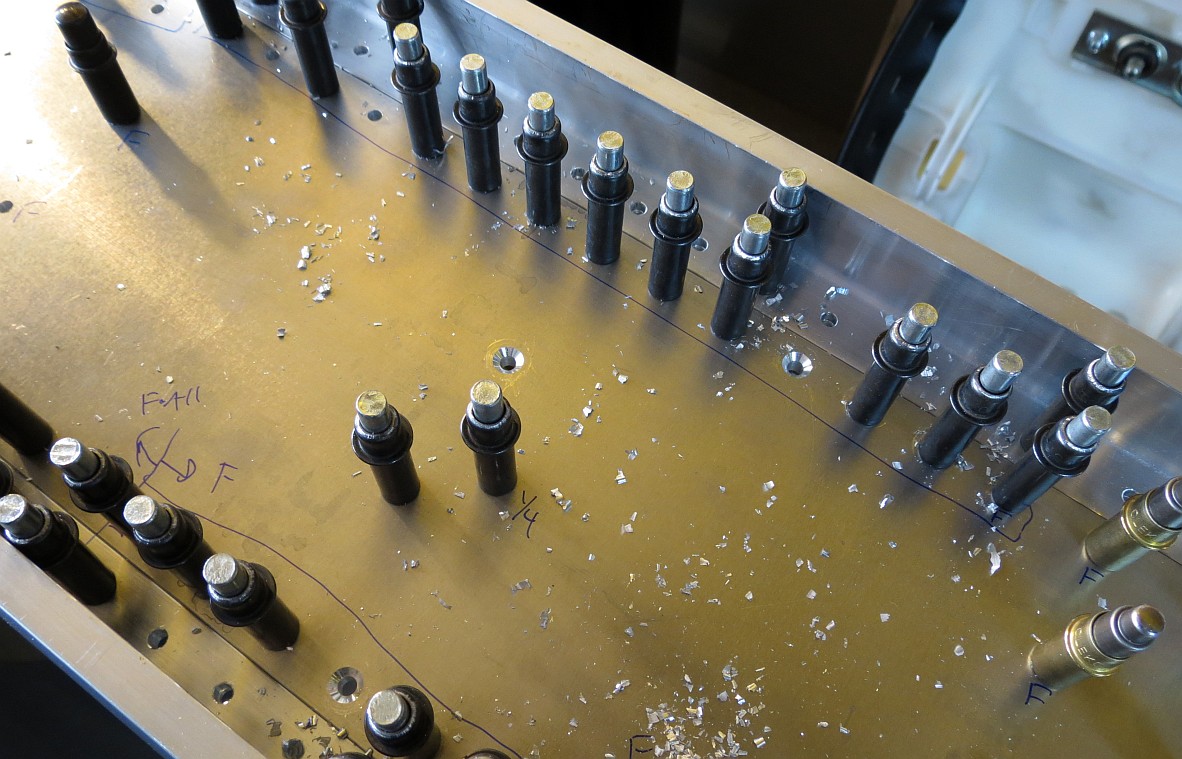

I deburred shearwebs and spar root parts. Without the full span shear web (.025" sheet), I finished updrilling all of the root flush rivet holes. Once complete, I started countersinking the holes in the spar cap & 1/8" shear web material.
